Upright Cooler and Freezer
Features & Benefits:
1. Designed with sharp appearance and innovations in mind, it fits in the most modern concept supermarket or stores.
2. World famous branded compressor and fan to make sure the excellent performance.
3. Intelligent digital temperature control-CAREL.
4. Air cooling products, fin-type evaporator, perfect cooling effect, uniform temperature.
5. Big insulated and transparent door can prevent condensation and reduce energy consumption.
6. Door with electric heating for auto-defrost, double or triple layer glass for cooler/freezer.
7. Interior LED light.
Specifications Upright Cooler:
|
Model Number |
|
SC-420F |
SC-920F |
SC-1450F |
|
Capacity |
Liters |
420L |
920L |
1420L |
|
Package dimensions |
WxDxH(mm) |
670*770*2210 |
1270*770*2210 |
1890*770*2210 |
|
Unit dimensions |
WxDxH(mm) |
630*700*2010 |
1230*700*2010 |
1850*700*2010 |
|
Type of appliance |
/ |
Free standing |
Free standing |
Free standing |
|
Cooling Type |
/ |
Ventilated |
Ventilated |
Ventilated |
|
Climate class |
/ |
ST |
ST |
ST |
|
Defrosting |
/ |
Automatic |
Automatic |
Automatic |
|
Foam Agent |
/ |
C-P |
C-P |
C-P |
|
Max noise level |
dBA |
Max:40 |
Max:44 |
Max:48 |
|
Voltage / Frequency |
V/Hz |
220-240V/50Hz |
220-240V/50Hz |
220-240V/50Hz |
|
Power |
W |
385 |
567 |
706 |
|
Temperature range |
From-to，n℃ |
2 ~ 8 |
2 ~ 8 |
2 ~ 8 |
|
Evaporator |
/ |
aluminum-tube and aluminum-fin |
aluminum-tube and aluminum-fin |
aluminum-tube and aluminum-fin |
|
Condenser |
/ |
Bottom Fan&Wire Tube |
Bottom Fan&Wire Tube |
Bottom Fan&Wire Tube |
|
Nominal Current |
A |
1.5 |
2.1 |
2.7 |
|
Consumption |
kWh/24hr |
3.2 |
4.7 |
5.9 |
|
Light box |
ABS |
Option |
Option |
Option |
|
Colour of cabinet |
Steel Painting |
White |
White |
White |
|
Inside cabinet walls |
/ |
painted Aluminum sheet,White |
painted Aluminum sheet,white |
painted Aluminum sheet,white |
|
Door Frame |
/ |
Aluminum |
Aluminum |
Aluminum |
|
Glass |
/ |
Two Layer Tempered |
Two Layer Tempered |
Two Layer Tempered |
|
Thickness of cabinet walls |
mm |
60 |
60 |
60 |
|
Water box (Hot pipe evaporate) |
PS |
Yes |
Yes |
Yes |
|
Interior light |
LED |
Side |
Two sides |
Three sides |
|
Door |
/ |
Hinge(self-closing) |
Hinge(self-closing) |
Hinge(self-closing) |
|
Colour of door frame |
White/Black |
Option |
Option |
Option |
|
Handle |
Integrated/External |
Integrated |
Integrated |
Integrated |
|
Lock |
/ |
Yes |
Yes |
Yes |
|
Wheels/Castors |
/ |
2(30mm wheel) +2 adjustable feet |
4 (60mm castors, 2 with brake) |
6 (60mm castors, 3with brake) |
|
Theromstat |
/ |
Digital（Carel） |
Digital（Carel） |
Digital（Carel） |
|
Circle Fan |
/ |
Yes |
Yes |
Yes |
|
Condenser Fan |
/ |
Yes |
Yes |
Yes |
|
Shelves |
White Painted Wire |
4 Painted Wires |
4 Painted Wires |
4 Painted Wires |
|
Back grill |
/ |
Yes |
Yes |
Yes |
|
Bottom cover |
/ |
sheet |
sheet |
sheet |
|
Weight |
KG |
95 |
125 |
165 |
|
40' Container load |
PCS |
54 |
27 |
18 |

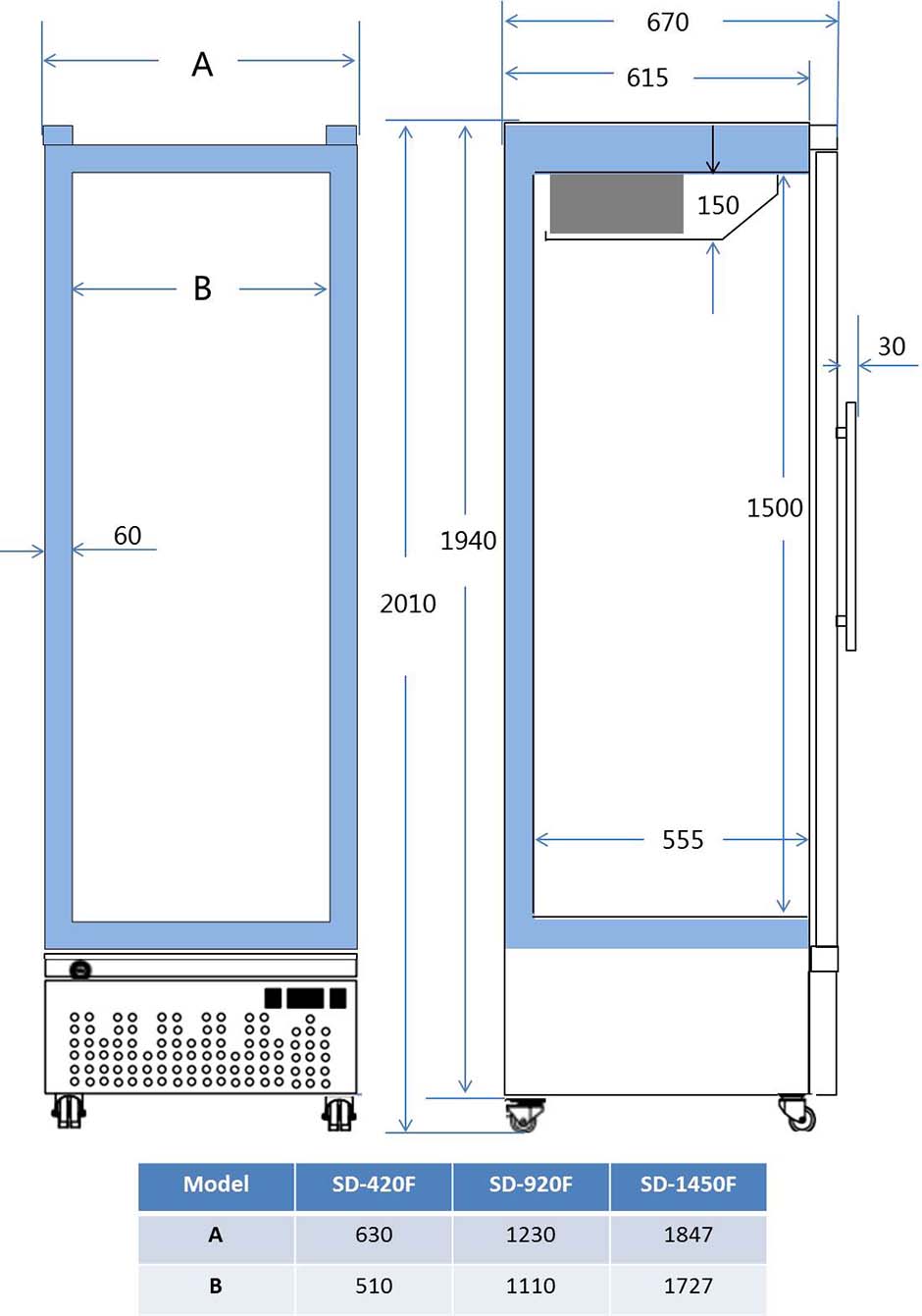

Specifications Upright Freezer:
|
Model Number |
|
SD-420F |
SD-920F |
SD-1450F |
|
Capacity |
Liters |
420L |
920L |
1420L |
|
Package dimensions |
WxDxH(mm) |
670*770*2210 |
1270*770*2210 |
1890*770*2210 |
|
Unit dimensions |
WxDxH(mm) |
630*700*2010 |
1230*700*2010 |
1850*700*2010 |
|
Type of appliance |
/ |
Free standing |
Free standing |
Free standing |
|
Cooling Type |
/ |
Ventilated |
Ventilated |
Ventilated |
|
Climate class |
/ |
ST |
ST |
ST |
|
Defrosting |
/ |
Automatic |
Automatic |
Automatic |
|
Foam Agent |
/ |
C-P |
C-P |
C-P |
|
Max noise level |
dBA |
Max:44 |
Max:48 |
Max:52 |
|
Voltage / Frequency |
V/Hz |
220-240V/50Hz |
220-240V/50Hz |
220-240V/50Hz |
|
Power |
W |
730 |
1520 |
1680 |
|
Temperature range |
From-to，n℃ |
-18~-22 |
-18~-22 |
-18~-22 |
|
Evaporator |
/ |
copper-tube and aluminum-fin |
copper-tube and aluminum-fin |
copper-tube and aluminum-fin |
|
Condenser |
/ |
Bottom Fan&Wire Tube |
Bottom Fan&Wire Tube |
Bottom Fan&Wire Tube |
|
Nominal Current |
A |
3.2 |
5.4 |
7.9 |
|
Consumption |
kWh/24hr |
8.2 |
17.1 |
20.1 |
|
Light box |
ABS |
Option |
Option |
Option |
|
Colour of cabinet |
Steel Painting |
White |
White |
White |
|
Inside cabinet walls |
/ |
painted Aluminum sheet,White |
painted Aluminum sheet,white |
painted Aluminum sheet,white |
|
Door Frame |
/ |
Aluminum |
Aluminum |
Aluminum |
|
Glass |
/ |
Triple Layer Tempered |
Triple Layer Tempered |
Triple Layer Tempered |
|
Thickness of cabinet walls |
mm |
60 |
60 |
60 |
|
Water box (Hot pipe evaporate) |
PS |
Yes |
Yes |
Yes |
|
Interior light |
LED |
Side |
Two sides |
Three sides |
|
Door |
/ |
Hinge(self-closing) |
Hinge(self-closing) |
Hinge(self-closing) |
|
Colour of door frame |
White/Black |
Option |
Option |
Option |
|
Handle |
Integrated/External |
Integrated |
Integrated |
Integrated |
|
Lock |
/ |
Yes |
Yes |
Yes |
|
Wheels/Castors |
/ |
2(30mm wheel) +2 adjustable feet |
4 (60mm castors, 2 with brake) |
6 (60mm castors, 3with brake) |
|
Theromstat |
/ |
Digital（Carel） |
Digital（Carel） |
Digital（Carel） |
|
Circle Fan |
/ |
Yes |
Yes |
Yes |
|
Condenser Fan |
/ |
Yes |
Yes |
Yes |
|
Shelves |
White Painted Wire |
4 Painted Wires |
8 Painted Wires |
12 Painted Wires |
|
Back grill |
/ |
Yes |
Yes |
Yes |
|
Bottom cover |
/ |
sheet |
sheet |
sheet |
|
Weight |
KG |
95 |
125 |
165 |
|
40' Container load |
PCS |
54 |
27 |
18 |
